Motorized Retractable Awning
Motorized Retractable Awning (A110/A140)
Instant shade ro open-sky enjoyment - flexible comfort at your fingertips
 Material | 6063-T5 aluminium alloy |
 Frame Finish | Powder coated |
 Lighting | Built-in 3000K LED strip |
 Motor IP Rating | IP67 |
 Wind rating | Up to 62 km/H (N1) when fully open |
 Warranty | 10 years on frame and fabric, 2 years on motor and accessories |
Structure (A110)
Post
100x100x2.0mm
Gutter
120.7x115x2.0mm
Guide Rail
110x65x1.5mm
Main roller tube
75x60x1.5mm

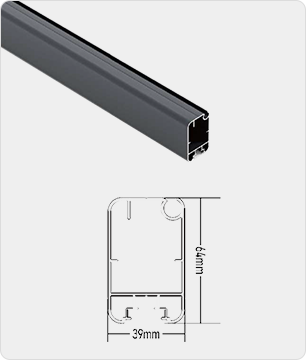

Sub-roller with LED
64x39x1.4mm
Sub-roller(no LED)
64x39x1.4mm
Transmission Rod
70.8x1.5mm
Beam
120x57x2.0mm
Rain shield
110x15.1x0.7mm
Side cover plate
20.1x18.2x1.1mm
Structure (A140)
Post
Thickness:144x102x2.0mm
Gutter
Thickness:150.7x130x2.5mm
Guide Rail
Thickness:140x70x2.0mm
Main roller tube
Thickness:100x65x2.0mm
Sub-roller with LED
Thickness:64x39x1.4mm
Sub-roller(no LED)
Thickness:64x39x1.4mm
Transmission Rod
Thickness:70.8x1.5mm
Beam
Thickness:120x80x2.0mm
Rain shield
Thickness:110x15.1x0.7mm
Side cover plate
Thickness:20.1x18.2x1.1mm
3D Fabric
Wider & thicker louvre profile for enhanced durability
| Property | Specification |
|---|---|
| Material | PVC + Fiberglass |
| Tensile Strength | Warp: 3312N/5cm Weft: 2898N/5cm |
| Tear Strength | Warp: 325N Weft: 298N |
| UPF Rating | UPF 50+ |
| Thickness | 0.67mm |
| Weight | 850g/m² |
Available Colors
Product Comparison
| Component | Structure(A110) | Structure(A140) |
|---|---|---|
| Post | 100x100x2.0mm | 144x102x2.0mm |
| Guide Rail | 110x65x1.5mm | 140x70x2.0mm |
| Gutter | 120.7x115x2.0mm | 150.7x130x2.5mm |
| Main roller tube | 75x60x1.5mm | 100x65x2.0mm |
| Sub-roller with LED | 64x39x1.4mm | 64x39x1.4mm |
| Sub-roller (no LED) | 64x39x1.4mm | 64x39x1.4mm |
| Transmission Rod | 70.8×1.5mm | 70.8×1.5mm |
| Beam | 120x57x2.0mm | 120x80x2.0mm |
| Rain Shield | 110×15.1×0.7mm | 110×15.1×0.7mm |
| Side cover plate | 20.1×18.2×1.1mm | 20.1×18.2×1.1mm |
Perfect for café patios or boutique balconies, offering shade without compromising ambience.
Ideal for private villa courtyards or backyard lounges, seamlessly blending with modern architecture.
Designed for garden corners or compact outdoor nooks, creating a cosy retreat with nature.
Best suited for large residential decks or commercial walkways, providing expansive sun and rain protection.
